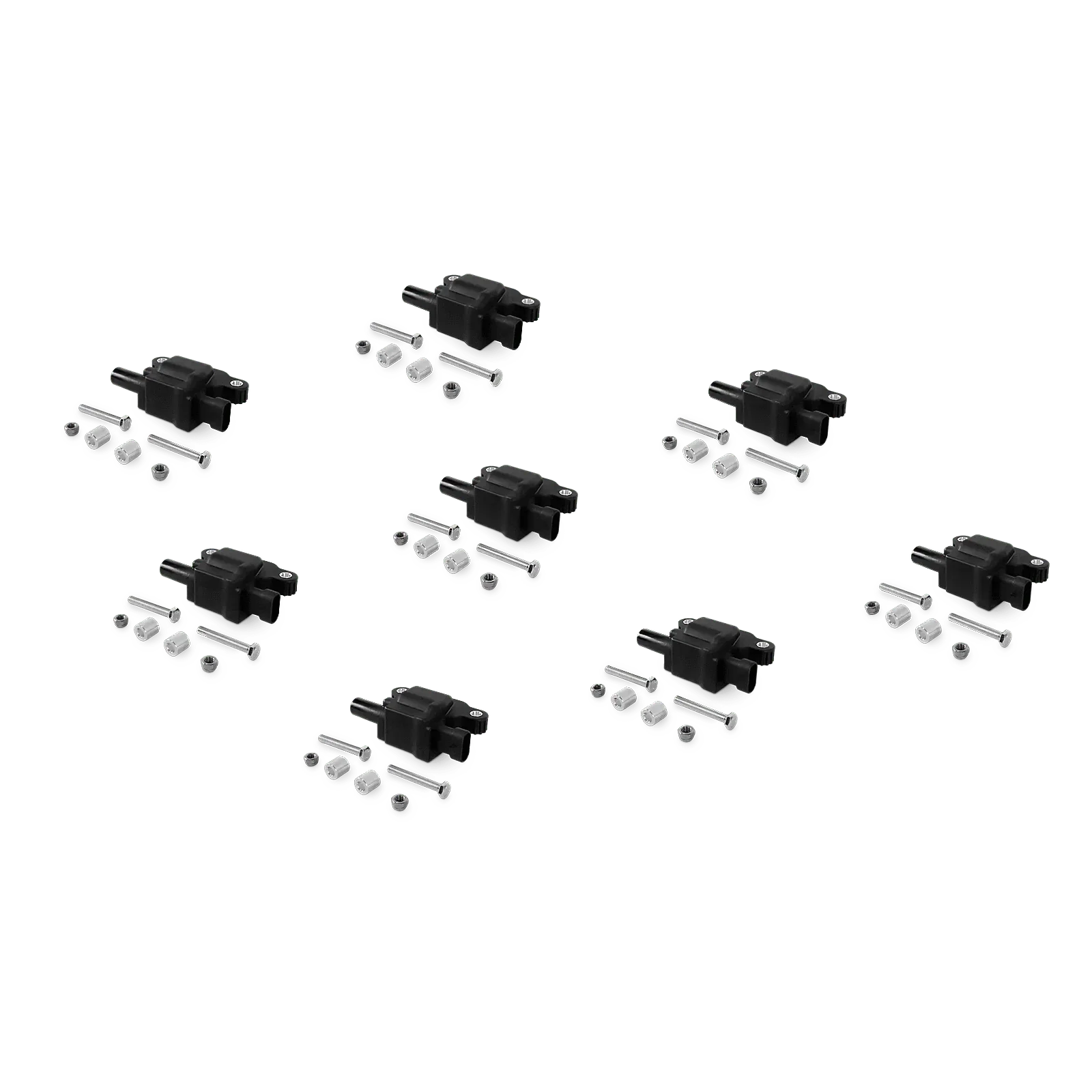

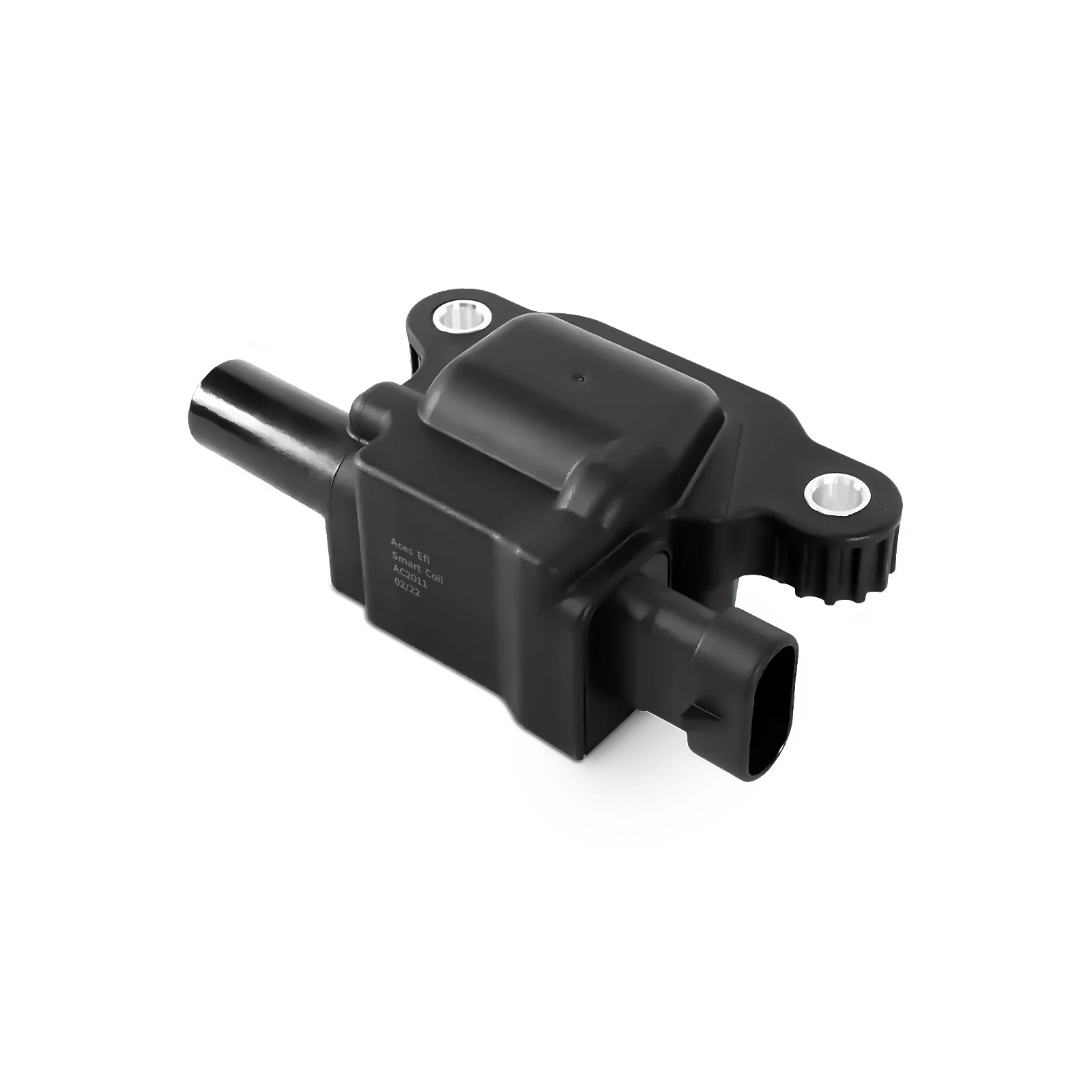

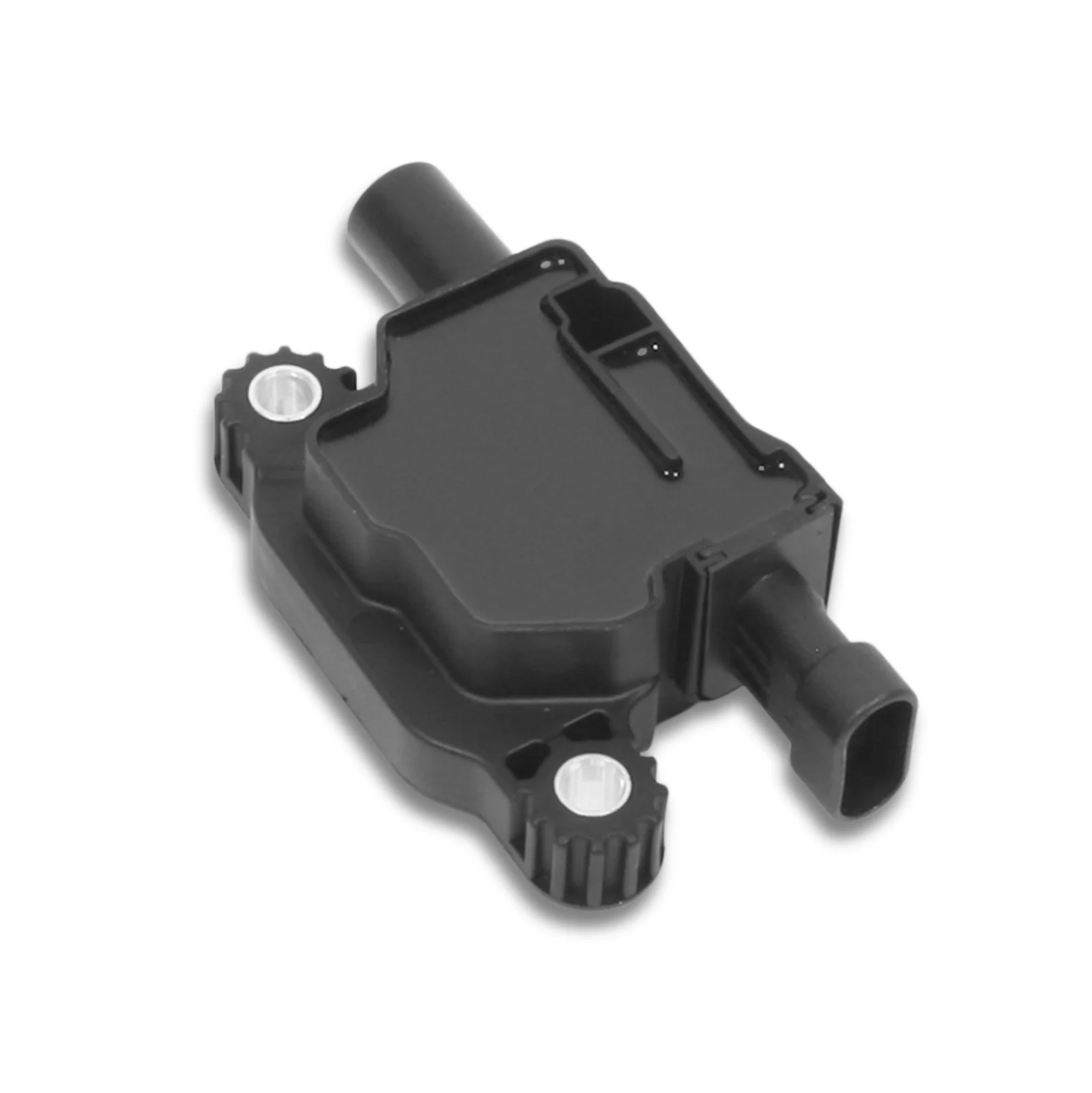

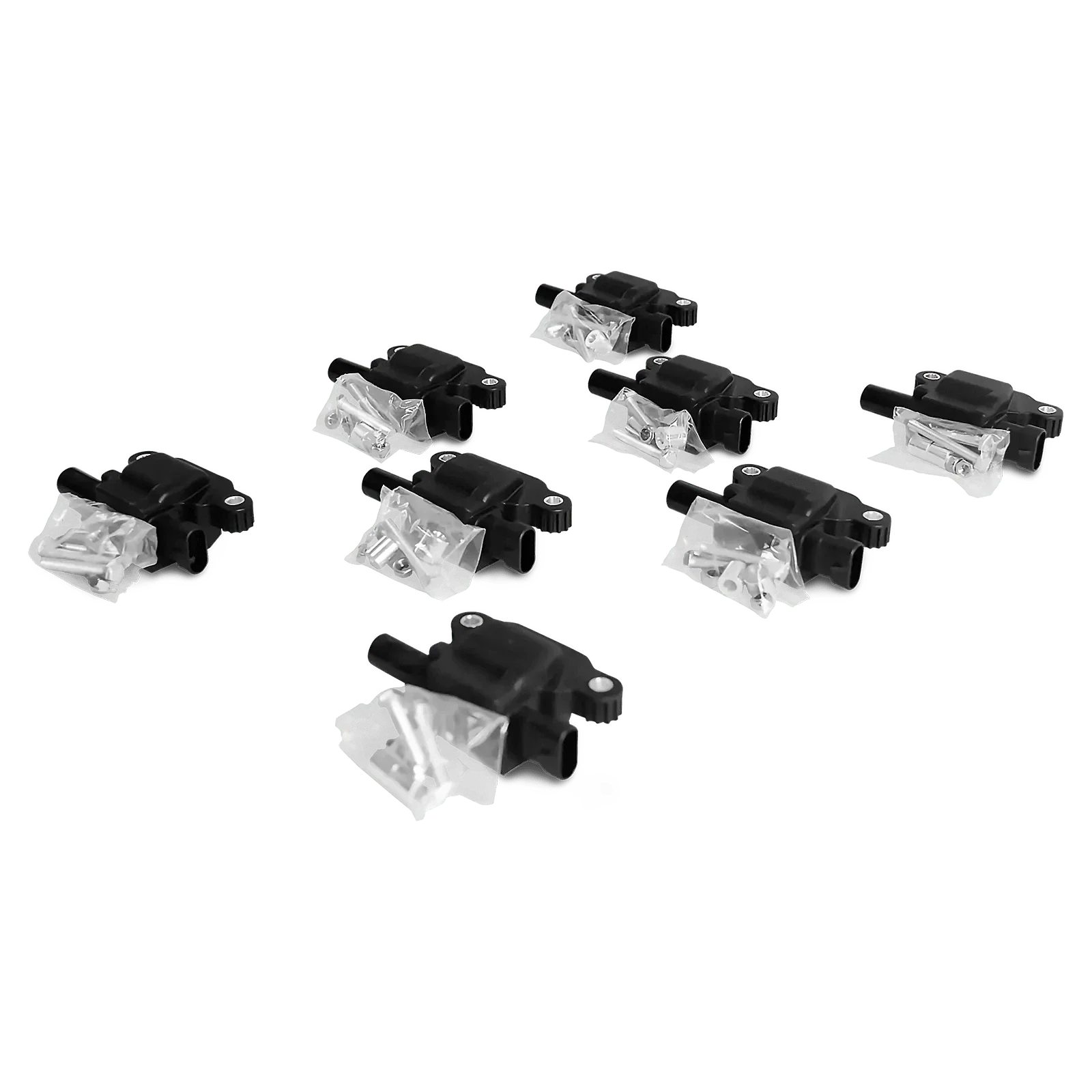

Aces EFI GM LS Ignition Coil
ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.
TECHNICAL SPECIFICATIONS
- Primary Current: 5A
- Output (25pF load): 40 kV
- Output Energy: 45 mJ (Zener Energy@1000V)
- Turns Ratio 75:1
- Base Dwell: 3ms
- Smart Coil integrated with IGBT driver
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil
ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.
TECHNICAL SPECIFICATIONS
- Primary Current: 5A
- Output (25pF load): 40 kV
- Output Energy: 45 mJ (Zener Energy@1000V)
- Turns Ratio 75:1
- Base Dwell: 3ms
- Smart Coil integrated with IGBT driver
Select Quantity
From $42.99
Aces EFI GM LS Ignition Coilā
$42.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.
TECHNICAL SPECIFICATIONS
- Primary Current: 5A
- Output (25pF load): 40 kV
- Output Energy: 45 mJ (Zener Energy@1000V)
- Turns Ratio 75:1
- Base Dwell: 3ms
- Smart Coil integrated with IGBT driver
